Circle of fifths

Lore & Background

The circle of fifths developed in the late 1600s and early 1700s to theorize the modulation of the Baroque era. Heinichen placed the relative minor key next to the major key, which did not reflect the actual proximity of keys. This was later developed into chordal space, incorporating the parallel minor as well.

Reader's Guide

The circle of fifths is a central reference for musical composition and harmony. It shows the most closely related key signatures adjacent to one another, making it useful for modulation and chord progression. Tonal music often modulates to a new tonal center whose key signature differs from the original by only one flat or sharp; these closely-related keys are a fifth apart and adjacent in the circle. Chord progressions also often move between chords whose roots are related by perfect fifth. The circle is used to organize and describe the harmonic or tonal function of chords, with the tonic considered the end point of a progression derived from the circle. Using the exact 3:2 ratio of frequencies to define a perfect fifth (just intonation) does not quite result in a return to the starting pitch class after going around the circle; the overshoot is the Pythagorean comma. Twelve-tone equal temperament tuning produces fifths that return to a tone exactly seven octaves above the initial tone. The term circle of fifths is sometimes used more generally for any tuning system in which the interval representing a perfect fifth may be stacked repeatedly to eventually reach the starting pitch class, such as 31 equal temperament or 53 equal temperament.

Did You Know?

• Ascending by twelve justly tuned perfect fifths overshoots the starting pitch class by an interval known as the Pythagorean comma, approximately 23.46 cents.
• Some sources imply the circle of fifths was known in antiquity by Pythagoras, but this is a misunderstanding and an anachronism.
• In the circle, moving counterclockwise from C could be thought of as descending by a fifth to F, or ascending by a fourth to F.

The Geometry of Fifths and the Pythagorean Problem

At its core, the circle of fifths is a mathematical statement about how pitch classes relate to one another. Starting from any tone and repeatedly ascending by a perfect fifth—defined in just intonation by the frequency ratio of 3:2—generates every one of the twelve chromatic pitch classes before theoretically returning to the starting point. In practice, however, twelve such fifths overshoot the original pitch by a small but significant interval called the Pythagorean comma, measuring roughly 23.46 cents, or about a quarter of a semitone. This tiny discrepancy meant that early musicians who transposed or modulated through multiple keys encountered increasingly out-of-tune intervals. To resolve the problem, theorists developed tempering systems that slightly altered the pure 3:2 ratio so the circle would close perfectly. The most widely adopted solution, twelve-tone equal temperament, produces a fifth with a frequency ratio of 2^(7/12), approximately 1.4983, just two cents narrower than the just fifth. This compromise allows the chromatic semitone and diatonic semitone to share an identical ratio, making the instrument playable across all keys without the accumulated drift that pure tuning would impose.

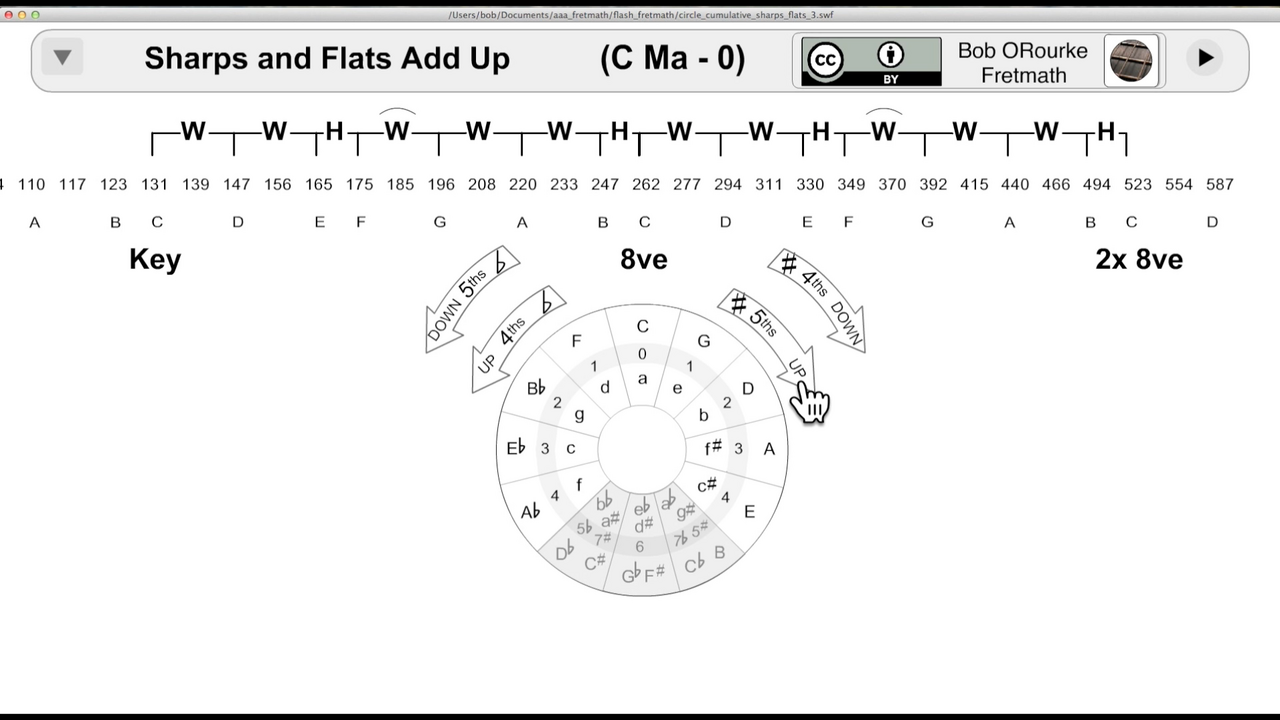

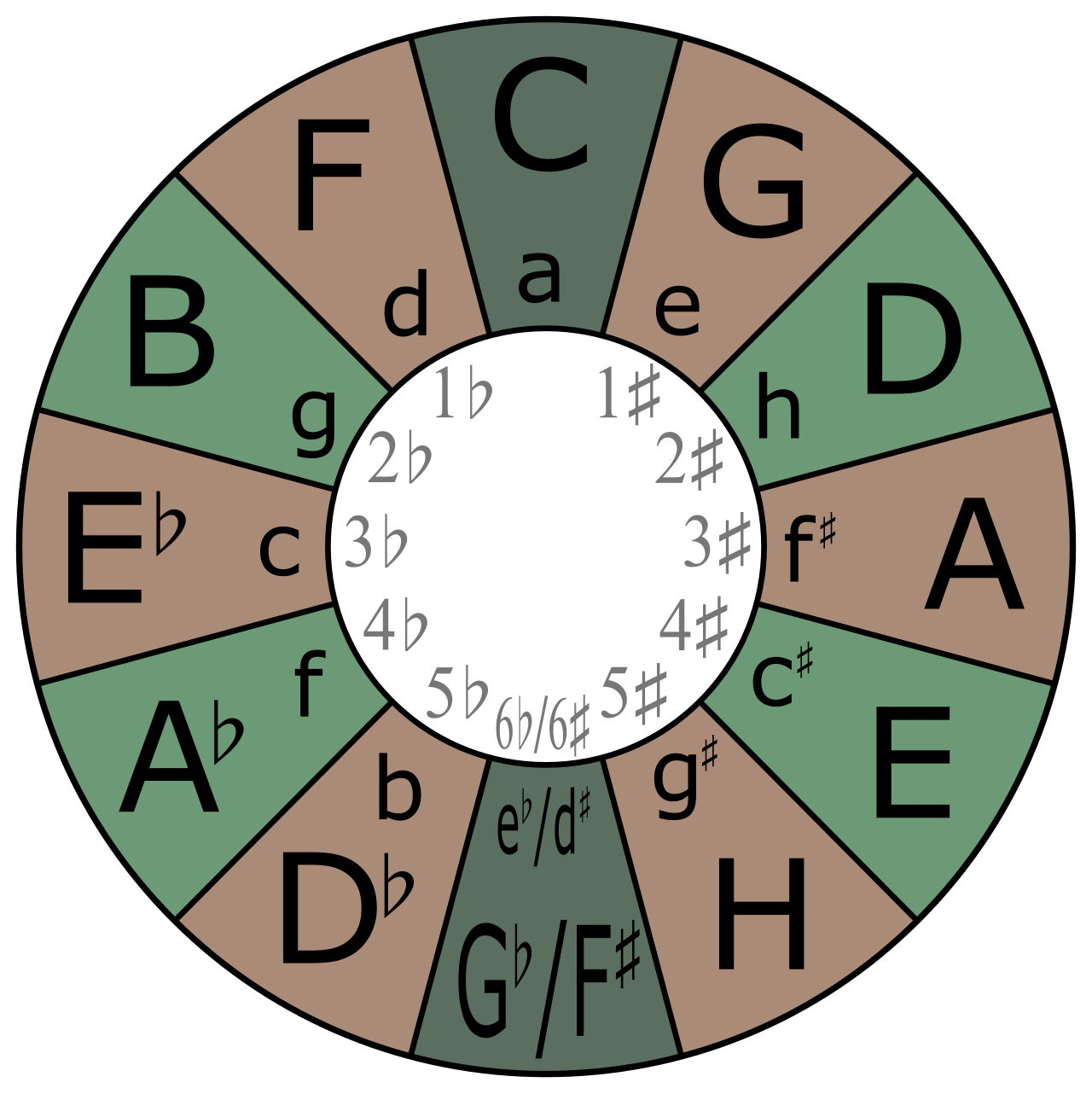

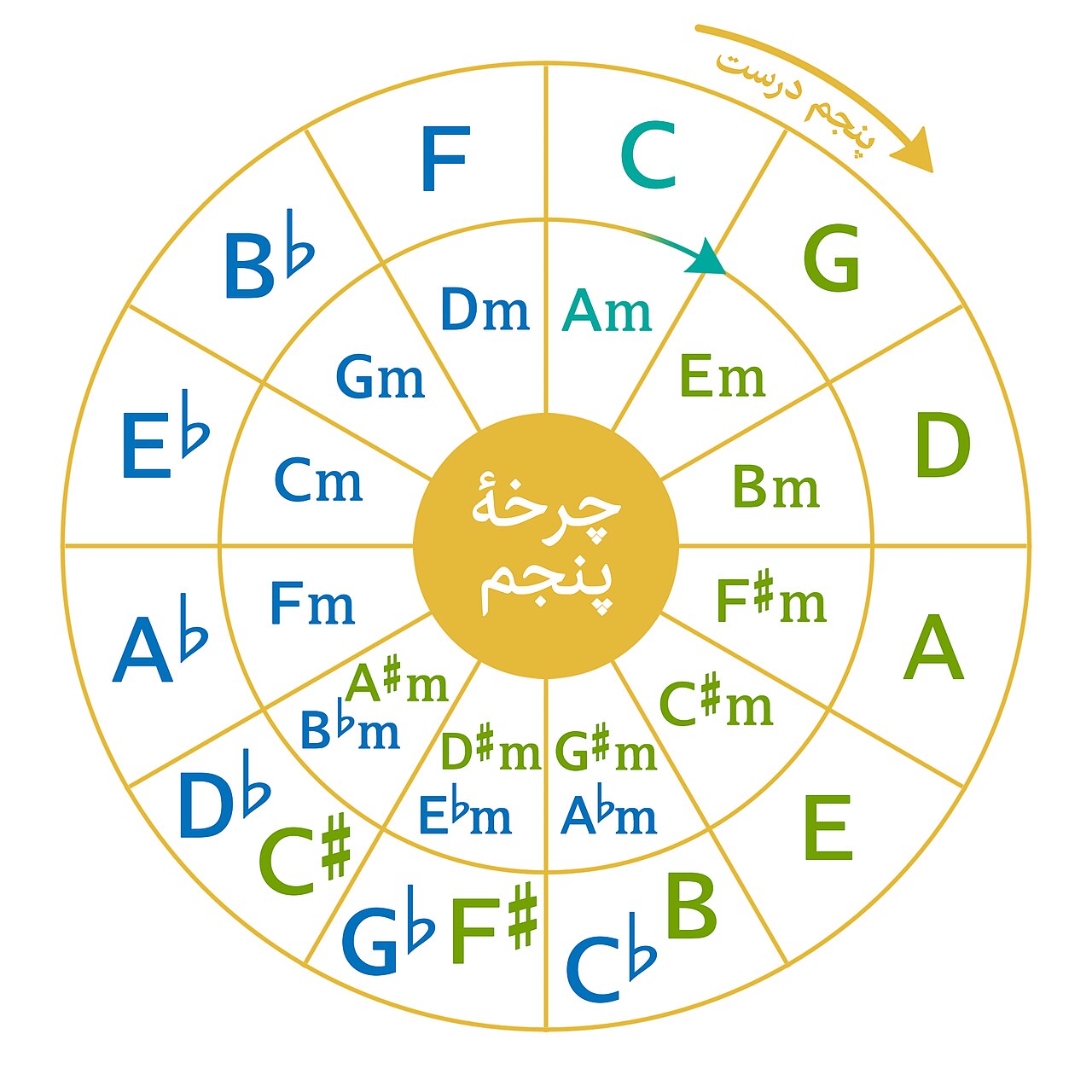

The Visual Map of Key Signatures

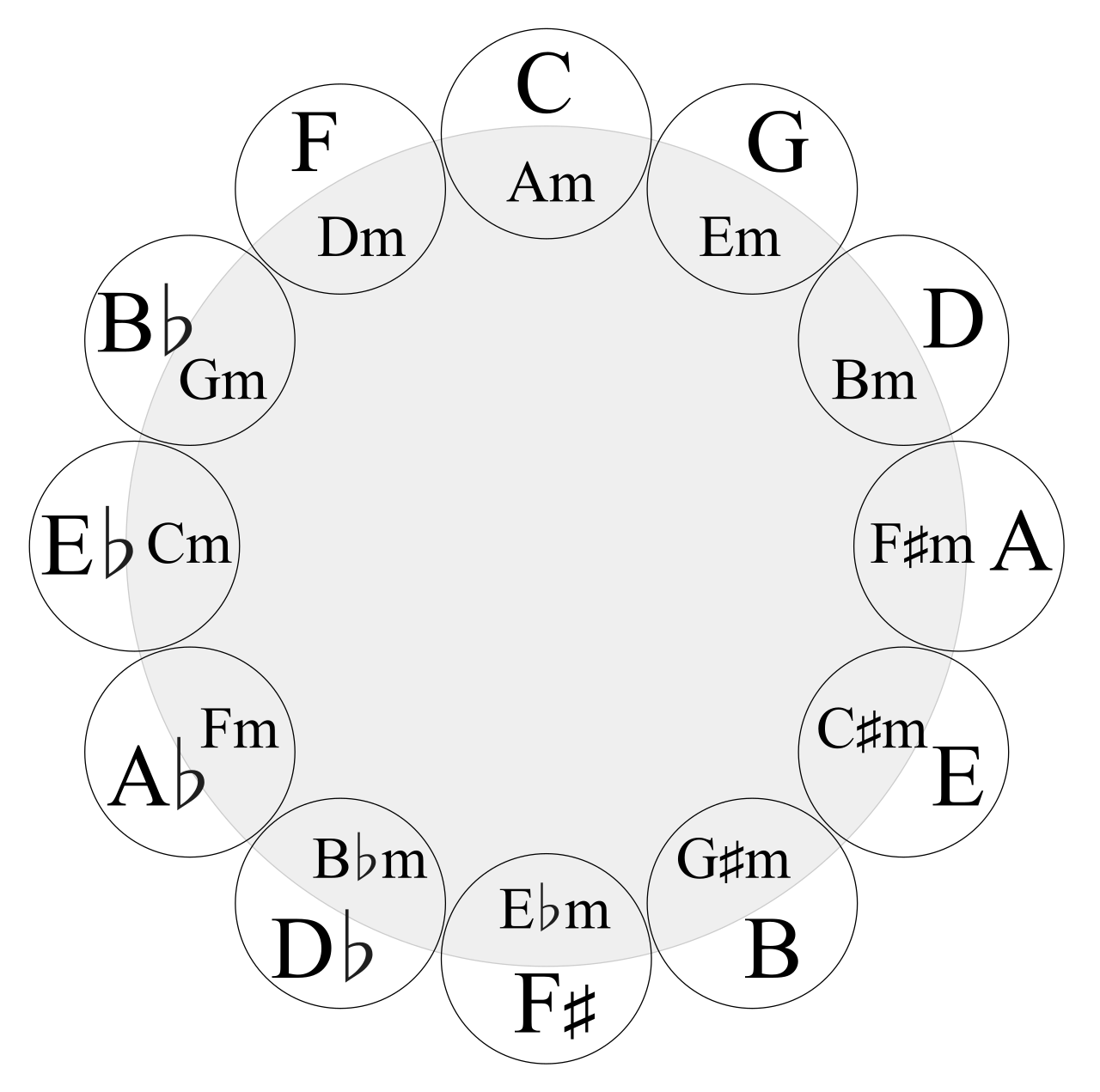

The circle is most commonly drawn as a ring with C Major positioned at the twelve-o'clock location, carrying no sharps or flats in its key signature. Moving clockwise, each successive key adds one sharp: G Major has one, D Major has two, and the pattern continues through A, E, and B. Moving counterclockwise from C, each step introduces a flat instead—F Major gains one flat, B-flat Major gains two, and so on. At the bottom of the circle, certain keys can be notated equivalently in sharps or flats, creating the familiar enharmonic pairs. Each position on the ring also carries a relative minor key, indicated by a lowercase letter, sharing the same key signature as its major counterpart. For instance, the key signature with two sharps belongs equally to D Major and B minor. This dual labeling makes the diagram an instantly readable reference for any composer or theorist who needs to identify how many accidentals a given key requires, or to quickly locate the closest tonal neighbors of a chosen tonic.

Harmonic Function and the Logic of Progression

In tonal Western music, the circle of fifths serves as a map of harmonic distance. When a piece modulates, it most naturally shifts to a key whose signature differs by just one sharp or flat—exactly one step along the circle. This adjacency reflects the fact that such keys share the greatest number of common tones. Chord progressions follow a similar logic: roots related by a perfect fifth, or equivalently a perfect fourth, create the strongest sense of forward motion. Theorist Richard Franko Goldman emphasized that the IV chord sits at the greatest harmonic distance from the tonic in simple diatonic relationships, leading away from I rather than toward it. This explains why an authentic cadence (I–ii–V–I) feels more decisively resolved than a plagal cadence (I–IV–I). In Goldman's framework, the tonic is the destination of a progression that traces the circle, and chords closer to the dominant on that path exert a stronger gravitational pull back home. The circle thus encodes not just pitch relationships but the very grammar of musical tension and release.

The Enharmonic Stitch and the Wolf Fifth

Despite its elegant circular appearance, the diagram contains a subtle notational seam. A perfect fifth above A-sharp would logically be E-sharp, yet standard notation substitutes F, producing an interval that is technically a diminished sixth rather than a true fifth. The same substitution occurs in the counterclockwise direction, where the fifth below G-flat should be C-flat but is written as B, again creating a diminished sixth. These enharmonic patches are necessary to keep the circle readable within the twelve-letter alphabet, but they reveal that the geometry is not perfectly seamless. The problem becomes audible in non-equal tuning systems. If one builds a scale from twelve justly tuned fifths, the final interval needed to close the loop is a markedly narrow, dissonant diminished sixth—so out of tune that it was nicknamed the wolf fifth, a playful allusion to a wolf howling an off-pitch note. Historical well temperaments distributed this unpleasantness across several intervals rather than concentrating it in one, while equal temperament eliminated it entirely by narrowing every fifth by a few cents.
